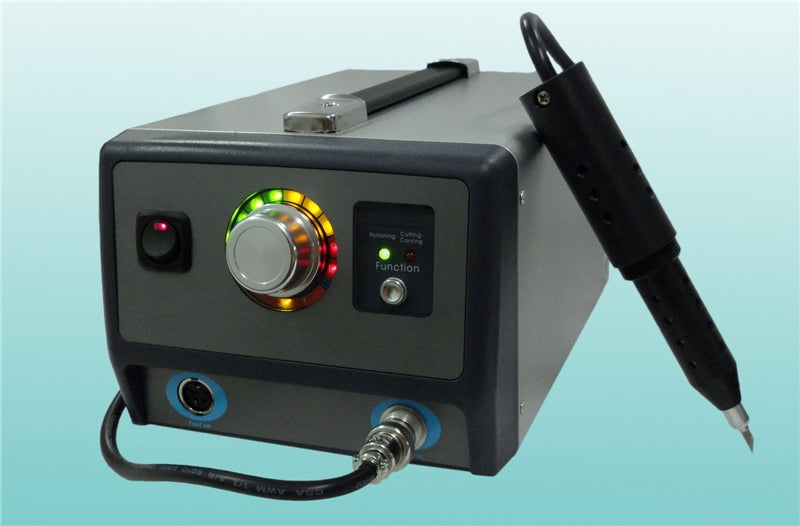

UC-60N Ultrasonic Cutting Tool

UC-60N Ultrasonic Cutting Tool

By combining ultrasonic vibration with the cutting blade, user fatigue is reduced during cutting, and the cutting work can be completed with light force. The ultrasonic cutting blade can reach a high-speed vibration frequency of 40,000 times per second, which can provide beautiful and clean cut surfaces and easily handle 3D printed products; and it can be equipped with two different controllers to meet the needs of different work.



Features of ultrasonic knife use:

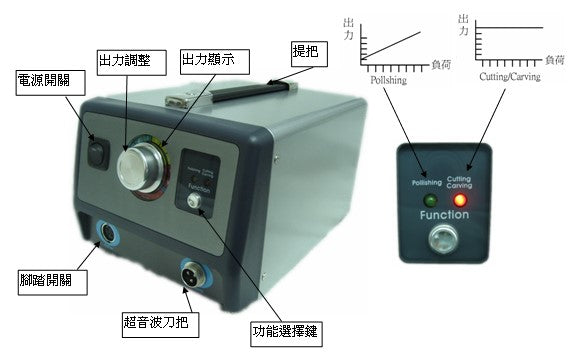

• Rapid back-and-forth blade vibration for easier cutting. • High-efficiency design with superior force compared to comparable products. • Front-end clamping blade for strong and even blade grip. • Automatic detection system with fault warnings. • Stepless output control for user-friendly operation (indicators are displayed in intervals).
• LED display panel for clear indication of force application status. • Unique power-saving mode prevents the handle from overheating.

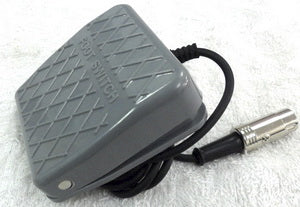

(Foot pedal controller)



Cutting characteristics of various materials
The table below shows the recommended cutting speeds and reference data for different material thicknesses. Users should still adjust the optimal cutting power according to the actual material and thickness being cut!

Cutting materials	thickness	UC-60N
ABS, PE	2 mm	4mm/second
	3 mm	2mm/second
	4 mm	1mm/second
Acrylic	2 mm	3mm/second
	3 mm	2mm/second
Nylon, PP	1 mm	Difficult to cut
	2 mm	Difficult to cut
non-woven fabric	1 mm	Cuttable
Neoprene Chloroprene Rubber	5 mm	Cuttable
corrugated paper	8 mm	Cuttable
plywood	2.5 mm	Cuttable
glass fiber resin	1.5 mm	Cuttable
Thick cardboard	1.5 mm	Cuttable
Urethane Ethyl carbamate	2 mm	Difficult to cut
Linoleum (Flax) Roofing Felt	2 mm	Cuttable

Note: When using UC-60N, please adjust the cutting speed according to the thickness of different materials.

Accessories contents

Product Name	quantity	Remark

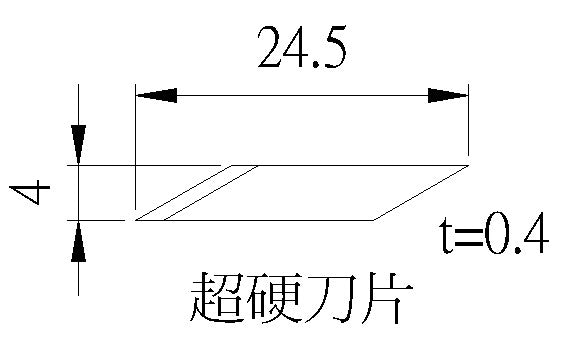

Special blade	3 boxes	20 tablets/box
Special tools	5	4mm L-shaped wrenches (5 pieces/pack)
Locking screws	12	4mm screws (12 pieces/pack)
Cleaning stick	1	Used to scrape dust from the blade groove
Tool holder	1	Used to hold knife handle
Gloves	1 pair	Anti-slip and heat-resistant
Blade holder	1	Used to hold the blade
Transparent accessory box	1	For storing accessories

【Precautions】
This cutting tool is specifically designed for repairing and cutting short circuits in PCB copper foil and for cutting plastic parts. Therefore, it is not suitable for cutting other materials that are too hard or too elastic, such as ceramics, glass, aluminum plates, and steel, or soft materials such as silicone sheets and soft rubber.
