CtrlAX Ultrasonic Cutting Blade
CtrlAX Ultrasonic Cutting Blade is backordered and will ship as soon as it is back in stock.
Choose add-on
Couldn't load pickup availability
CtrlAX Ultrasonic Cutting Blade
CtrlAX Ultrasonic Cutting Blade
We use scissors to cut paper, drill holes in walls, and saw to cut wood. So how do we cut plastic, which we use so frequently?
Cutra has launched a new product – the CtrlAX ultrasonic cutter . The CtrlAX is the second generation of the Wondercutter, with 1.6 times the power. It features 40,000 vibrations per second, comes in various applications and blade types, is robust yet quiet, offers controllable power, and is easy to use.
With its superior quality, functionality, precision, and professionalism, the CtrlAX ultrasonic cutter will improve all your cutting tasks.
With CtrlAX, cutting plastic is as easy as cutting cheese!
What is ultrasonic cutting technology?
Ultrasonic cutting technology is used in large-scale industries such as automotive and injection molding. We have miniaturized it.
Main features
40,000 vibrations per second
Maximize efficiency and minimize energy loss. The CtrlAX is a compact ultrasonic cutter that vibrates 40,000 times per second and utilizes ultrasonic energy to reduce the coefficient of friction in materials, enabling easy and precise cuts.
Sturdy and durable
Cutra's developers communicated with supporters and users, identified real-world problems, and thus successfully developed an ultrasonic cutter with excellent quality and functionality.
Various types of blades
CtrlAX comes with multiple dedicated blades. Choose the one that suits you! Select the best product designed for cutting every material.
CX-Basic
CX-Dig (Digging Blade )
CX-Half (Narrow Blade )
CX-Long ( Long Blade)
CX-Saw ( saw blade)
3 power modes
Choose the appropriate power to cut the material you want to cut.
• Eco-friendly mode: Cut thin and flexible materials, such as leather, cardboard and soft resin.
• Comfort mode: Cuts materials that are both thick and soft or hard and thin.
• Sport Mode: The most powerful mode, suitable for cutting thick and hard materials such as hard resin and carbon fiber.
*This is just a suggested approach; please determine the strength based on the material you are cutting.
Continuous mode
Continuous mode allows you to comfortably use the device for extended periods, and most importantly, it continues to operate even when you don't press any buttons.
Use continuous mode
• Press and hold the button on the handle. • Press and hold the button on the main unit at the same time.
Various materials
Various applications

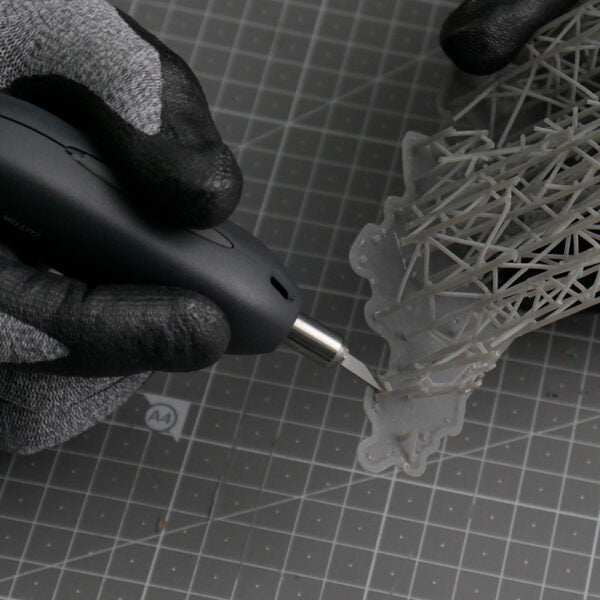

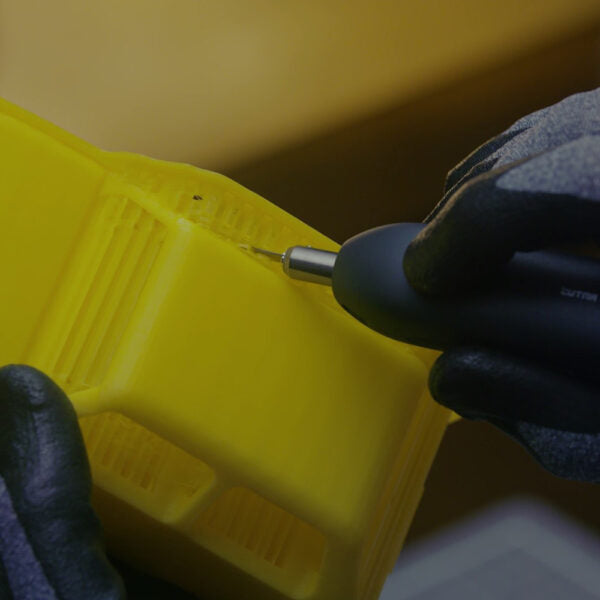

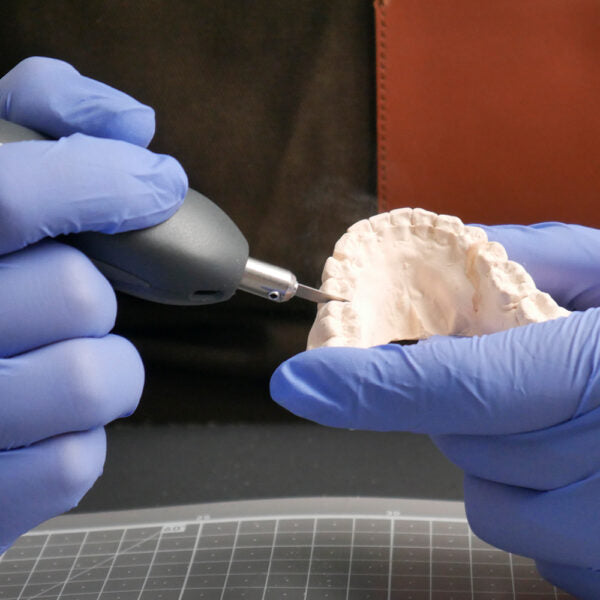

When you need a reliable, fast cutting machine to complete your work on time, this professional ultrasonic cutter is exactly what you need. It can be widely used in 3D printing , dental products, and manufacturing industries.
Products include:
• CtrlAX x1
• CX-Basic (Basic Blade) x40
• CX-Long (Long Blade) x3
• CX-Saw (saw blade) x3
• CX-Dig (Digging Blade) x3
• CX-Half (Narrow Blade) x3
• Torque wrench x1
• Torque wrench replacement head x1
• Converter x1
• 3 fixing screws
• Chuck x1
• Test board (pearl board) x1
• User Guide x1
• Safety gloves x1
| color | Dark gray |
| frequency | 40,000 Hz |
| Body size | 198 x 72 x 90 mm / 7.95 x 3.27 x 3.54 inches |
| Handle size | 25 x 113 mm / 0.98 x 4.45 inches |
| Wire length | 25.2 inches / 64 mm |
| Net weight (approx.) | 435 grams (handle weight approximately: 80 grams) |
| Voltage | 110V - 240V (50/60 Hz) |
| Power consumption | 25W |
| blade | 5 types |
| Power mode | Level 3 |
| model | Continuous operation mode |
| Adapter type | United States/European Union/United Kingdom/South Korea |
| CtrlAx | Made in South Korea |
| blade | Made in Japan/Korea |
| Torque wrench head | Swiss Made |
